keyple::card::calypso::AbstractApduCommand Class Reference

#include <AbstractApduCommand.h>

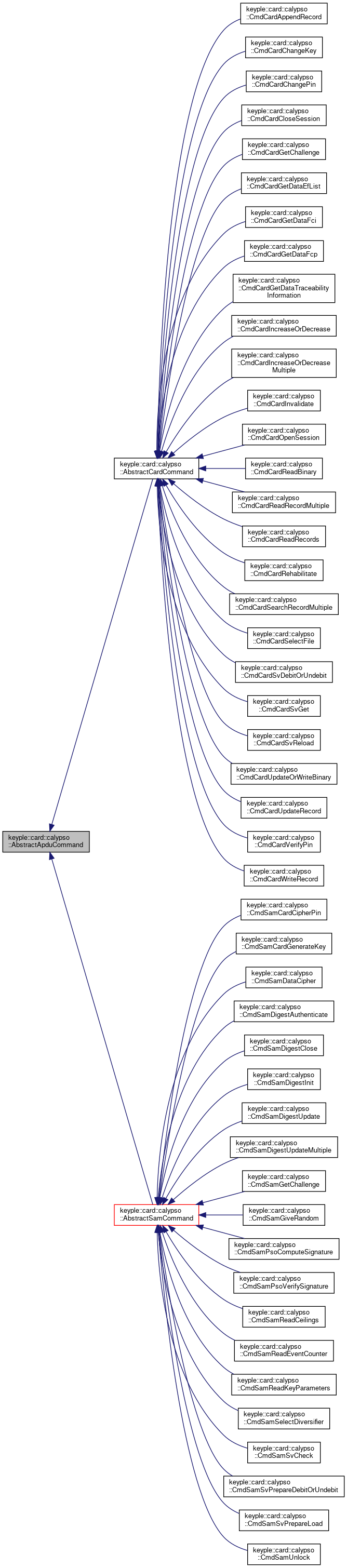

Inheritance diagram for keyple::card::calypso::AbstractApduCommand:

Classes
class	StatusProperties

Public Member Functions
	AbstractApduCommand (const CardCommand &commandRef, const int expectedResponseLength)
virtual void	addSubName (const std::string &subName) final
virtual const CardCommand &	getCommandRef () const
virtual const std::string &	getName () const final
virtual void	setExpectedResponseLength (const int expectedResponseLength) final
virtual void	setApduRequest (const std::shared_ptr< ApduRequestAdapter > apduRequest) final
virtual const std::shared_ptr< ApduRequestAdapter >	getApduRequest () const final
virtual void	parseApduResponse (const std::shared_ptr< ApduResponseApi > apduResponse)
virtual const std::shared_ptr< ApduResponseApi >	getApduResponse () const final
virtual const std::map< const int, const std::shared_ptr< StatusProperties > > &	getStatusTable () const
virtual const CalypsoApduCommandException	buildCommandException (const std::type_info &exceptionClass, const std::string &message) const =0
virtual const CalypsoApduCommandException	buildUnexpectedResponseLengthException (const std::string &message) const =0
virtual bool	isSuccessful () const final
virtual const std::string	getStatusInformation () const final

Static Public Attributes
static const std::map< const int, const std::shared_ptr< StatusProperties > >	STATUS_TABLE

Detailed Description

(package-private)
Generic APDU command.

It provides the generic getters to retrieve:

• the card command reference,
• the name of the command,
• the built org.calypsonet.terminal.card.spi.ApduRequestSpi,
• the parsed org.calypsonet.terminal.card.ApduResponseApi.

Since

2.0.1

Definition at line 48 of file AbstractApduCommand.h.

Constructor & Destructor Documentation

AbstractApduCommand()

keyple::card::calypso::AbstractApduCommand::AbstractApduCommand	(	const CardCommand &	commandRef,
		const int	expectedResponseLength
	)

(package-private)
Constructor

Parameters

commandRef	The command reference.
expectedResponseLength	The expected response length or -1 if not specified.

Since

2.0.1

Definition at line 87 of file AbstractApduCommand.cpp.

Member Function Documentation

addSubName()

void keyple::card::calypso::AbstractApduCommand::addSubName ( const std::string &  subName )

finalvirtual

(package-private)
Appends a string to the current name.

The sub name completes the name of the current command. This method must therefore only be invoked conditionally (log level >= debug).

Parameters

subName

The string to append.

Exceptions

NullPointerException

If the request is not set.

Since

2.0.1

Definition at line 90 of file AbstractApduCommand.cpp.

buildCommandException()

virtual const CalypsoApduCommandException keyple::card::calypso::AbstractApduCommand::buildCommandException ( const std::type_info &  exceptionClass, const std::string &  message  ) const

pure virtual

(package-private)
Builds a specific APDU command exception.

Parameters

message

The message.

Returns

A not null reference.

A not null value

Since

2.0.1

Implemented in keyple::card::calypso::AbstractCardCommand, and keyple::card::calypso::AbstractSamCommand.

buildUnexpectedResponseLengthException()

virtual const CalypsoApduCommandException keyple::card::calypso::AbstractApduCommand::buildUnexpectedResponseLengthException ( const std::string &  message ) const

pure virtual

(package-private)
Builds a specific APDU command exception for the case of an unexpected response length.

Parameters

message

The message.

Returns

A not null reference.

Since

2.1.1

Implemented in keyple::card::calypso::AbstractCardCommand, and keyple::card::calypso::AbstractSamCommand.

getApduRequest()

const std::shared_ptr< ApduRequestAdapter > keyple::card::calypso::AbstractApduCommand::getApduRequest ( ) const

finalvirtual

(package-private)
Gets the ApduRequestAdapter.

Returns

Null if the request is not set.

Since

2.0.1

Definition at line 117 of file AbstractApduCommand.cpp.

getApduResponse()

const std::shared_ptr< ApduResponseApi > keyple::card::calypso::AbstractApduCommand::getApduResponse ( ) const

finalvirtual

(package-private)
Gets ApduResponseApi

Returns

Null if the response is not set.

Since

2.0.1

Definition at line 129 of file AbstractApduCommand.cpp.

getCommandRef()

const CardCommand & keyple::card::calypso::AbstractApduCommand::getCommandRef ( ) const

virtual

(package-private)
Gets CardCommand the current command identification

Returns

A not null reference.

Since

2.0.1

Reimplemented in keyple::card::calypso::AbstractCardCommand, and keyple::card::calypso::AbstractSamCommand.

Definition at line 96 of file AbstractApduCommand.cpp.

getName()

const std::string & keyple::card::calypso::AbstractApduCommand::getName ( ) const

finalvirtual

(package-private)
Gets the name of this APDU command.

Returns

A not empty string.

Since

2.0.1

Definition at line 101 of file AbstractApduCommand.cpp.

getStatusInformation()

const std::string keyple::card::calypso::AbstractApduCommand::getStatusInformation ( ) const

finalvirtual

(package-private)
Gets the ASCII message from the statusTable for the current status word.

Returns

A nullable value

Since

2.0.1

Definition at line 316 of file AbstractApduCommand.cpp.

getStatusTable()

const std::map< const int, const std::shared_ptr< StatusProperties > > & keyple::card::calypso::AbstractApduCommand::getStatusTable ( ) const

virtual

(package-private)
Returns the internal status table

Returns

A not null reference

Since

2.0.1

Reimplemented in keyple::card::calypso::AbstractSamCommand, keyple::card::calypso::CmdCardAppendRecord, keyple::card::calypso::CmdCardChangeKey, keyple::card::calypso::CmdCardChangePin, keyple::card::calypso::CmdCardCloseSession, keyple::card::calypso::CmdCardGetDataEfList, keyple::card::calypso::CmdCardGetDataFci, keyple::card::calypso::CmdCardGetDataFcp, keyple::card::calypso::CmdCardGetDataTraceabilityInformation, keyple::card::calypso::CmdCardIncreaseOrDecrease, keyple::card::calypso::CmdCardIncreaseOrDecreaseMultiple, keyple::card::calypso::CmdCardInvalidate, keyple::card::calypso::CmdCardOpenSession, keyple::card::calypso::CmdCardReadBinary, keyple::card::calypso::CmdCardReadRecordMultiple, keyple::card::calypso::CmdCardReadRecords, keyple::card::calypso::CmdCardRehabilitate, keyple::card::calypso::CmdCardSearchRecordMultiple, keyple::card::calypso::CmdCardSelectFile, keyple::card::calypso::CmdCardSvDebitOrUndebit, keyple::card::calypso::CmdCardSvGet, keyple::card::calypso::CmdCardSvReload, keyple::card::calypso::CmdCardUpdateOrWriteBinary, keyple::card::calypso::CmdCardUpdateRecord, keyple::card::calypso::CmdCardVerifyPin, keyple::card::calypso::CmdCardWriteRecord, keyple::card::calypso::CmdSamCardCipherPin, keyple::card::calypso::CmdSamCardGenerateKey, keyple::card::calypso::CmdSamDataCipher, keyple::card::calypso::CmdSamDigestAuthenticate, keyple::card::calypso::CmdSamDigestClose, keyple::card::calypso::CmdSamDigestInit, keyple::card::calypso::CmdSamDigestUpdate, keyple::card::calypso::CmdSamDigestUpdateMultiple, keyple::card::calypso::CmdSamGetChallenge, keyple::card::calypso::CmdSamGiveRandom, keyple::card::calypso::CmdSamPsoComputeSignature, keyple::card::calypso::CmdSamPsoVerifySignature, keyple::card::calypso::CmdSamReadCeilings, keyple::card::calypso::CmdSamReadEventCounter, keyple::card::calypso::CmdSamReadKeyParameters, keyple::card::calypso::CmdSamSelectDiversifier, keyple::card::calypso::CmdSamSvCheck, keyple::card::calypso::CmdSamSvPrepareDebitOrUndebit, keyple::card::calypso::CmdSamSvPrepareLoad, keyple::card::calypso::CmdSamUnlock, and keyple::card::calypso::CmdSamWriteKey.

Definition at line 135 of file AbstractApduCommand.cpp.

isSuccessful()

bool keyple::card::calypso::AbstractApduCommand::isSuccessful ( ) const

finalvirtual

(package-private)
Gets true if the status is successful from the statusTable according to the current status code and if the length of the response is equal to the LE field in the request.

Returns

A value

Since

2.0.1

Definition at line 149 of file AbstractApduCommand.cpp.

parseApduResponse()

void keyple::card::calypso::AbstractApduCommand::parseApduResponse ( const std::shared_ptr< ApduResponseApi >  apduResponse )

virtual

(package-private)
Parses the response ApduResponseApi and check the status word.

Parameters

apduResponse

The APDU response.

Exceptions

CalypsoApduCommandException

if status is not successful or if the length of the response is not equal to the LE field in the request.

Since

2.0.1

Reimplemented in keyple::card::calypso::AbstractCardCommand, keyple::card::calypso::AbstractSamCommand, keyple::card::calypso::CmdCardAppendRecord, keyple::card::calypso::CmdCardCloseSession, keyple::card::calypso::CmdCardGetChallenge, keyple::card::calypso::CmdCardGetDataEfList, keyple::card::calypso::CmdCardGetDataFci, keyple::card::calypso::CmdCardGetDataFcp, keyple::card::calypso::CmdCardGetDataTraceabilityInformation, keyple::card::calypso::CmdCardIncreaseOrDecrease, keyple::card::calypso::CmdCardIncreaseOrDecreaseMultiple, keyple::card::calypso::CmdCardOpenSession, keyple::card::calypso::CmdCardReadBinary, keyple::card::calypso::CmdCardReadRecordMultiple, keyple::card::calypso::CmdCardReadRecords, keyple::card::calypso::CmdCardSearchRecordMultiple, keyple::card::calypso::CmdCardSelectFile, keyple::card::calypso::CmdCardSvDebitOrUndebit, keyple::card::calypso::CmdCardSvGet, keyple::card::calypso::CmdCardSvReload, keyple::card::calypso::CmdCardUpdateRecord, keyple::card::calypso::CmdCardVerifyPin, keyple::card::calypso::CmdCardWriteRecord, keyple::card::calypso::CmdSamDataCipher, keyple::card::calypso::CmdSamPsoComputeSignature, keyple::card::calypso::CmdSamPsoVerifySignature, keyple::card::calypso::CmdCardUpdateOrWriteBinary, keyple::card::calypso::CmdSamReadCeilings, and keyple::card::calypso::CmdSamReadEventCounter.

Definition at line 122 of file AbstractApduCommand.cpp.

setApduRequest()

void keyple::card::calypso::AbstractApduCommand::setApduRequest ( const std::shared_ptr< ApduRequestAdapter >  apduRequest )

finalvirtual

(package-private)
Sets the command ApduRequestAdapter.

Parameters

apduRequest

The APDU request.

Since

2.0.1

Definition at line 111 of file AbstractApduCommand.cpp.

setExpectedResponseLength()

void keyple::card::calypso::AbstractApduCommand::setExpectedResponseLength ( const int  expectedResponseLength )

finalvirtual

Sets the expected response length.

Since

2.2.5.4

Definition at line 106 of file AbstractApduCommand.cpp.

Member Data Documentation

STATUS_TABLE

const std::map< const int, const std::shared_ptr< StatusProperties > > keyple::card::calypso::AbstractApduCommand::STATUS_TABLE

static

Initial value:

= {
    {0x9000, std::make_shared<StatusProperties>("Success")},
}

(package-private)
This Map stores expected status that could be by default initialized with sw1=90 and sw2=00 (Success)

Since

2.0.1

Definition at line 129 of file AbstractApduCommand.h.

---

The documentation for this class was generated from the following files:

• /github/workspace/src/main/AbstractApduCommand.h
• /github/workspace/src/main/AbstractApduCommand.cpp
