keyple::card::calypso::AbstractSamCommand Class Reference

#include <AbstractSamCommand.h>

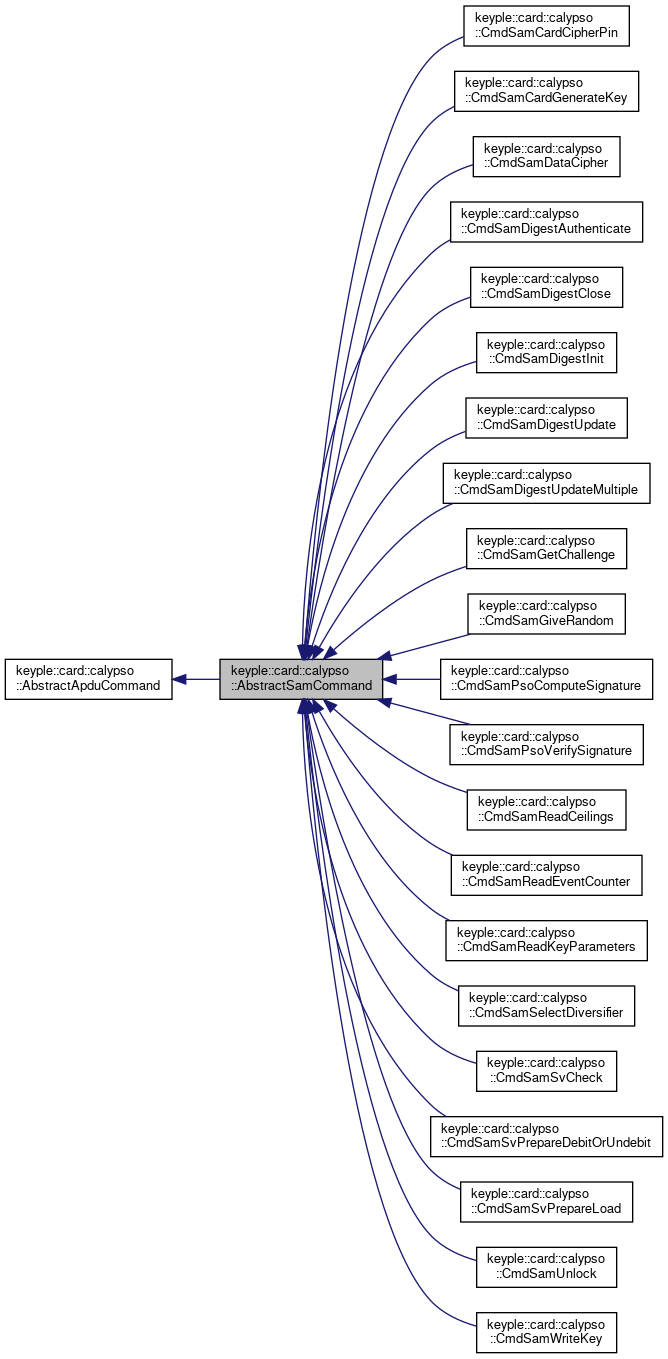

Inheritance diagram for keyple::card::calypso::AbstractSamCommand:

Collaboration diagram for keyple::card::calypso::AbstractSamCommand:

Public Member Functions
const std::map< const int, const std::shared_ptr< StatusProperties > > &	getStatusTable () const override
	AbstractSamCommand (const CalypsoSamCommand &commandRef, const int expectedResponseLength, const std::shared_ptr< CalypsoSamAdapter > calypsoSam)
const std::shared_ptr< CalypsoSamAdapter >	getCalypsoSam () const
const CalypsoSamCommand &	getCommandRef () const override
const CalypsoApduCommandException	buildCommandException (const std::type_info &exceptionClass, const std::string &message) const final
const CalypsoApduCommandException	buildUnexpectedResponseLengthException (const std::string &message) const final
void	parseApduResponse (const std::shared_ptr< ApduResponseApi > apduResponse) override
void	parseApduResponse (const std::shared_ptr< ApduResponseApi > apduResponse, const std::shared_ptr< CalypsoSamAdapter > calypsoSam)
Public Member Functions inherited from keyple::card::calypso::AbstractApduCommand
	AbstractApduCommand (const CardCommand &commandRef, const int expectedResponseLength)
virtual void	addSubName (const std::string &subName) final
virtual const std::string &	getName () const final
virtual void	setExpectedResponseLength (const int expectedResponseLength) final
virtual void	setApduRequest (const std::shared_ptr< ApduRequestAdapter > apduRequest) final
virtual const std::shared_ptr< ApduRequestAdapter >	getApduRequest () const final
virtual const std::shared_ptr< ApduResponseApi >	getApduResponse () const final
virtual bool	isSuccessful () const final
virtual const std::string	getStatusInformation () const final

Static Public Attributes
static const std::map< const int, const std::shared_ptr< StatusProperties > >	STATUS_TABLE = initStatusTable()
Static Public Attributes inherited from keyple::card::calypso::AbstractApduCommand
static const std::map< const int, const std::shared_ptr< StatusProperties > >	STATUS_TABLE

Detailed Description

(package-private)
Superclass for all SAM command.

Since

2.0.1

Definition at line 35 of file AbstractSamCommand.h.

Constructor & Destructor Documentation

AbstractSamCommand()

keyple::card::calypso::AbstractSamCommand::AbstractSamCommand	(	const CalypsoSamCommand &	commandRef,
		const int	expectedResponseLength,
		const std::shared_ptr< CalypsoSamAdapter >	calypsoSam
	)

(package-private)
Constructor dedicated for the building of referenced Calypso commands

Parameters

commandRef	A command reference from the Calypso command table.
expectedResponseLength	The expected response length or -1 if not specified.
calypsoSam	The Calypso SAM (it may be null if the SAM selection has not yet been made).

Since

2.0.1

Definition at line 34 of file AbstractSamCommand.cpp.

Member Function Documentation

buildCommandException()

const CalypsoApduCommandException keyple::card::calypso::AbstractSamCommand::buildCommandException ( const std::type_info &  exceptionClass, const std::string &  message  ) const

finalvirtual

(package-private)
Builds a specific APDU command exception.

Parameters

message

The message.

Returns

A not null reference.

A not null value

Since

2.0.1

Since

2.0.1

Implements keyple::card::calypso::AbstractApduCommand.

Definition at line 49 of file AbstractSamCommand.cpp.

buildUnexpectedResponseLengthException()

const CalypsoApduCommandException keyple::card::calypso::AbstractSamCommand::buildUnexpectedResponseLengthException ( const std::string &  message ) const

finalvirtual

(package-private)
Builds a specific APDU command exception for the case of an unexpected response length.

Parameters

message

The message.

Returns

A not null reference.

Since

2.1.1

Since

2.1.1

Implements keyple::card::calypso::AbstractApduCommand.

Definition at line 74 of file AbstractSamCommand.cpp.

getCalypsoSam()

const std::shared_ptr< CalypsoSamAdapter > keyple::card::calypso::AbstractSamCommand::getCalypsoSam

(

)

const

(package-private)
Returns the Calypso SAM.

Returns

Null if the SAM selection has not yet been made.

Since

2.2.3

Definition at line 39 of file AbstractSamCommand.cpp.

getCommandRef()

const CalypsoSamCommand & keyple::card::calypso::AbstractSamCommand::getCommandRef ( ) const

overridevirtual

(package-private)
Gets CardCommand the current command identification

Returns

A not null reference.

Since

2.0.1

Since

2.0.1

Reimplemented from keyple::card::calypso::AbstractApduCommand.

Definition at line 44 of file AbstractSamCommand.cpp.

getStatusTable()

const std::map< const int, const std::shared_ptr< StatusProperties > > & keyple::card::calypso::AbstractSamCommand::getStatusTable ( ) const

overridevirtual

(package-private)
Returns the internal status table

Returns

A not null reference

Since

2.0.1

Since

2.0.1

Reimplemented from keyple::card::calypso::AbstractApduCommand.

Reimplemented in keyple::card::calypso::CmdSamCardCipherPin, keyple::card::calypso::CmdSamCardGenerateKey, keyple::card::calypso::CmdSamDataCipher, keyple::card::calypso::CmdSamDigestAuthenticate, keyple::card::calypso::CmdSamDigestClose, keyple::card::calypso::CmdSamDigestInit, keyple::card::calypso::CmdSamDigestUpdate, keyple::card::calypso::CmdSamDigestUpdateMultiple, keyple::card::calypso::CmdSamGetChallenge, keyple::card::calypso::CmdSamGiveRandom, keyple::card::calypso::CmdSamPsoComputeSignature, keyple::card::calypso::CmdSamPsoVerifySignature, keyple::card::calypso::CmdSamReadCeilings, keyple::card::calypso::CmdSamReadEventCounter, keyple::card::calypso::CmdSamReadKeyParameters, keyple::card::calypso::CmdSamSelectDiversifier, keyple::card::calypso::CmdSamSvCheck, keyple::card::calypso::CmdSamSvPrepareDebitOrUndebit, keyple::card::calypso::CmdSamSvPrepareLoad, keyple::card::calypso::CmdSamUnlock, and keyple::card::calypso::CmdSamWriteKey.

Definition at line 112 of file AbstractSamCommand.cpp.

parseApduResponse() [1/2]

void keyple::card::calypso::AbstractSamCommand::parseApduResponse ( const std::shared_ptr< ApduResponseApi >  apduResponse )

overridevirtual

(package-private)
Parses the response ApduResponseApi and check the status word.

Parameters

apduResponse

The APDU response.

Exceptions

CalypsoApduCommandException

if status is not successful or if the length of the response is not equal to the LE field in the request.

Since

2.0.1

Since

2.0.1

Reimplemented from keyple::card::calypso::AbstractApduCommand.

Reimplemented in keyple::card::calypso::CmdSamDataCipher, keyple::card::calypso::CmdSamPsoComputeSignature, keyple::card::calypso::CmdSamPsoVerifySignature, keyple::card::calypso::CmdSamReadCeilings, and keyple::card::calypso::CmdSamReadEventCounter.

Definition at line 83 of file AbstractSamCommand.cpp.

parseApduResponse() [2/2]

void keyple::card::calypso::AbstractSamCommand::parseApduResponse	(	const std::shared_ptr< ApduResponseApi >	apduResponse,
		const std::shared_ptr< CalypsoSamAdapter >	calypsoSam
	)

(package-private)
Sets the Calypso SAM and invoke the parseApduResponse(ApduResponseApi) method.

Since

2.2.3

Definition at line 117 of file AbstractSamCommand.cpp.

Member Data Documentation

STATUS_TABLE

const std::map< const int, const std::shared_ptr< StatusProperties > > keyple::card::calypso::AbstractSamCommand::STATUS_TABLE = initStatusTable()

static

(package-private)
Default SAM product type.

Since

2.0.1

Definition at line 43 of file AbstractSamCommand.h.

---

The documentation for this class was generated from the following files:

• /github/workspace/src/main/AbstractSamCommand.h
• /github/workspace/src/main/AbstractSamCommand.cpp
