keyple::card::calypso::AbstractCardCommand Class Reference

#include <AbstractCardCommand.h>

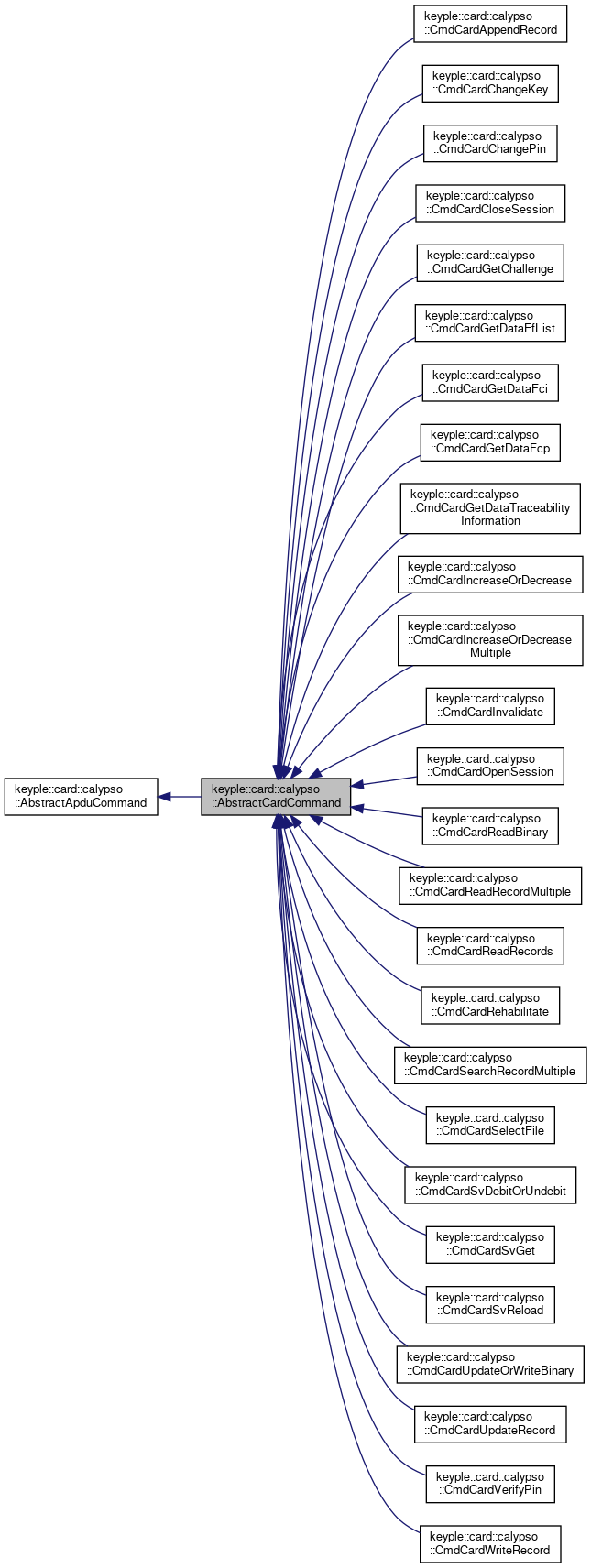

Inheritance diagram for keyple::card::calypso::AbstractCardCommand:

Collaboration diagram for keyple::card::calypso::AbstractCardCommand:

Public Member Functions
	AbstractCardCommand (const CalypsoCardCommand &commandRef, const int expectedResponseLength, const std::shared_ptr< CalypsoCardAdapter > calypsoCard)
const CalypsoCardCommand &	getCommandRef () const override
virtual bool	isSessionBufferUsed () const =0
const CalypsoApduCommandException	buildCommandException (const std::type_info &exceptionClass, const std::string &message) const final
const CalypsoApduCommandException	buildUnexpectedResponseLengthException (const std::string &message) const final
void	parseApduResponse (const std::shared_ptr< ApduResponseApi > apduResponse) override
std::shared_ptr< CalypsoCardAdapter >	getCalypsoCard () const
void	parseApduResponse (const std::shared_ptr< ApduResponseApi > apduResponse, const std::shared_ptr< CalypsoCardAdapter > calypsoCard)
Public Member Functions inherited from keyple::card::calypso::AbstractApduCommand
	AbstractApduCommand (const CardCommand &commandRef, const int expectedResponseLength)
virtual void	addSubName (const std::string &subName) final
virtual const std::string &	getName () const final
virtual void	setExpectedResponseLength (const int expectedResponseLength) final
virtual void	setApduRequest (const std::shared_ptr< ApduRequestAdapter > apduRequest) final
virtual const std::shared_ptr< ApduRequestAdapter >	getApduRequest () const final
virtual const std::shared_ptr< ApduResponseApi >	getApduResponse () const final
virtual const std::map< const int, const std::shared_ptr< StatusProperties > > &	getStatusTable () const
virtual bool	isSuccessful () const final
virtual const std::string	getStatusInformation () const final

Additional Inherited Members
Static Public Attributes inherited from keyple::card::calypso::AbstractApduCommand
static const std::map< const int, const std::shared_ptr< StatusProperties > >	STATUS_TABLE

Detailed Description

(package-private)
Superclass for all card commands.

Since

2.0.1

Definition at line 32 of file AbstractCardCommand.h.

Constructor & Destructor Documentation

AbstractCardCommand()

keyple::card::calypso::AbstractCardCommand::AbstractCardCommand	(	const CalypsoCardCommand &	commandRef,
		const int	expectedResponseLength,
		const std::shared_ptr< CalypsoCardAdapter >	calypsoCard
	)

(package-private)
Constructor dedicated for the building of referenced Calypso commands

Parameters

commandRef	a command reference from the Calypso command table.
expectedResponseLength	The expected response length or -1 if not specified.
calypsoCard	The Calypso card (it may be null if the card selection has not yet been made).

Since

2.0.1

Definition at line 34 of file AbstractCardCommand.cpp.

Member Function Documentation

buildCommandException()

const CalypsoApduCommandException keyple::card::calypso::AbstractCardCommand::buildCommandException ( const std::type_info &  exceptionClass, const std::string &  message  ) const

finalvirtual

(package-private)
Builds a specific APDU command exception.

Parameters

message

The message.

Returns

A not null reference.

A not null value

Since

2.0.1

Since

2.0.1

Implements keyple::card::calypso::AbstractApduCommand.

Definition at line 44 of file AbstractCardCommand.cpp.

buildUnexpectedResponseLengthException()

const CalypsoApduCommandException keyple::card::calypso::AbstractCardCommand::buildUnexpectedResponseLengthException ( const std::string &  message ) const

finalvirtual

(package-private)
Builds a specific APDU command exception for the case of an unexpected response length.

Parameters

message

The message.

Returns

A not null reference.

Since

2.1.1

Since

2.1.1

Implements keyple::card::calypso::AbstractApduCommand.

Definition at line 75 of file AbstractCardCommand.cpp.

getCalypsoCard()

std::shared_ptr< CalypsoCardAdapter > keyple::card::calypso::AbstractCardCommand::getCalypsoCard

(

)

const

(package-private)
Returns the Calypso card.

Returns

Null if the card selection has not yet been made.

Since

2.2.3

Definition at line 89 of file AbstractCardCommand.cpp.

getCommandRef()

const CalypsoCardCommand & keyple::card::calypso::AbstractCardCommand::getCommandRef ( ) const

overridevirtual

(package-private)
Gets CardCommand the current command identification

Returns

A not null reference.

Since

2.0.1

Since

2.0.1

Reimplemented from keyple::card::calypso::AbstractApduCommand.

Definition at line 39 of file AbstractCardCommand.cpp.

isSessionBufferUsed()

virtual bool keyple::card::calypso::AbstractCardCommand::isSessionBufferUsed ( ) const

pure virtual

(package-private)
Indicates if the session buffer is used when executing this command.

Allows the management of the overflow of this buffer.

Returns

True if this command uses the session buffer

Since

2.0.1

Implemented in keyple::card::calypso::CmdCardAppendRecord, keyple::card::calypso::CmdCardChangeKey, keyple::card::calypso::CmdCardChangePin, keyple::card::calypso::CmdCardCloseSession, keyple::card::calypso::CmdCardGetChallenge, keyple::card::calypso::CmdCardGetDataEfList, keyple::card::calypso::CmdCardGetDataFci, keyple::card::calypso::CmdCardGetDataFcp, keyple::card::calypso::CmdCardGetDataTraceabilityInformation, keyple::card::calypso::CmdCardIncreaseOrDecrease, keyple::card::calypso::CmdCardIncreaseOrDecreaseMultiple, keyple::card::calypso::CmdCardInvalidate, keyple::card::calypso::CmdCardOpenSession, keyple::card::calypso::CmdCardReadBinary, keyple::card::calypso::CmdCardReadRecordMultiple, keyple::card::calypso::CmdCardReadRecords, keyple::card::calypso::CmdCardRehabilitate, keyple::card::calypso::CmdCardSearchRecordMultiple, keyple::card::calypso::CmdCardSelectFile, keyple::card::calypso::CmdCardSvDebitOrUndebit, keyple::card::calypso::CmdCardSvGet, keyple::card::calypso::CmdCardSvReload, keyple::card::calypso::CmdCardUpdateOrWriteBinary, keyple::card::calypso::CmdCardUpdateRecord, keyple::card::calypso::CmdCardVerifyPin, and keyple::card::calypso::CmdCardWriteRecord.

parseApduResponse() [1/2]

void keyple::card::calypso::AbstractCardCommand::parseApduResponse ( const std::shared_ptr< ApduResponseApi >  apduResponse )

overridevirtual

(package-private)
Parses the response ApduResponseApi and check the status word.

Parameters

apduResponse

The APDU response.

Exceptions

CalypsoApduCommandException

if status is not successful or if the length of the response is not equal to the LE field in the request.

Since

2.0.1

Since

2.0.1

Reimplemented from keyple::card::calypso::AbstractApduCommand.

Reimplemented in keyple::card::calypso::CmdCardAppendRecord, keyple::card::calypso::CmdCardCloseSession, keyple::card::calypso::CmdCardGetChallenge, keyple::card::calypso::CmdCardGetDataEfList, keyple::card::calypso::CmdCardGetDataFci, keyple::card::calypso::CmdCardGetDataFcp, keyple::card::calypso::CmdCardGetDataTraceabilityInformation, keyple::card::calypso::CmdCardIncreaseOrDecrease, keyple::card::calypso::CmdCardIncreaseOrDecreaseMultiple, keyple::card::calypso::CmdCardOpenSession, keyple::card::calypso::CmdCardReadBinary, keyple::card::calypso::CmdCardReadRecordMultiple, keyple::card::calypso::CmdCardReadRecords, keyple::card::calypso::CmdCardSearchRecordMultiple, keyple::card::calypso::CmdCardSelectFile, keyple::card::calypso::CmdCardSvDebitOrUndebit, keyple::card::calypso::CmdCardSvGet, keyple::card::calypso::CmdCardSvReload, keyple::card::calypso::CmdCardUpdateRecord, keyple::card::calypso::CmdCardVerifyPin, keyple::card::calypso::CmdCardWriteRecord, and keyple::card::calypso::CmdCardUpdateOrWriteBinary.

Definition at line 84 of file AbstractCardCommand.cpp.

parseApduResponse() [2/2]

void keyple::card::calypso::AbstractCardCommand::parseApduResponse	(	const std::shared_ptr< ApduResponseApi >	apduResponse,
		const std::shared_ptr< CalypsoCardAdapter >	calypsoCard
	)

(package-private)
Sets the Calypso card and invoke the parseApduResponse(ApduResponseApi) method.

Since

2.2.3

Definition at line 94 of file AbstractCardCommand.cpp.

---

The documentation for this class was generated from the following files:

• /github/workspace/src/main/AbstractCardCommand.h
• /github/workspace/src/main/AbstractCardCommand.cpp
