keyple::card::calypso::AbstractSamCommand Class Reference

#include <AbstractSamCommand.h>

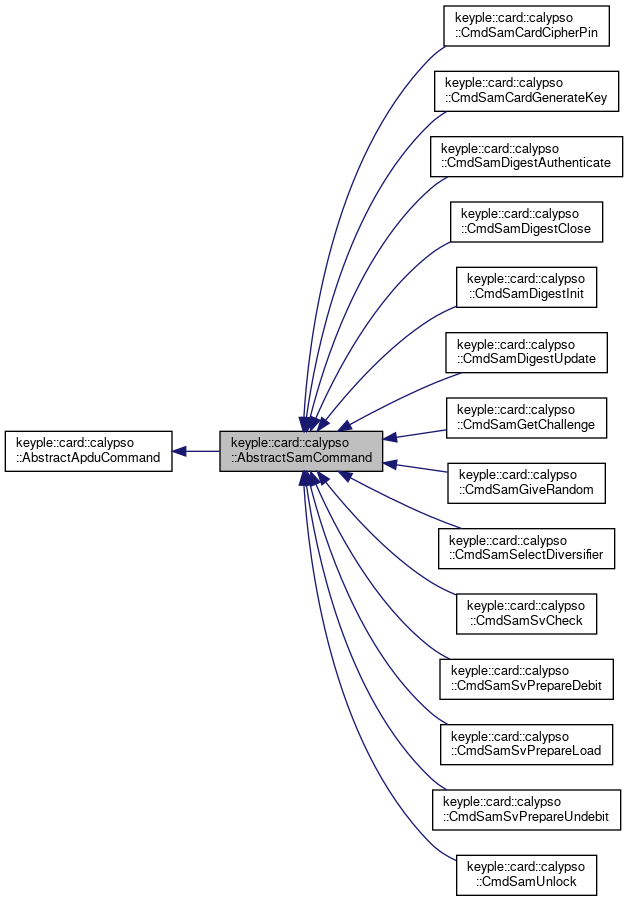

Inheritance diagram for keyple::card::calypso::AbstractSamCommand:

Collaboration diagram for keyple::card::calypso::AbstractSamCommand:

Public Member Functions
const std::map< const int, const std::shared_ptr< StatusProperties > > &	getStatusTable () const override
	AbstractSamCommand (const CalypsoSamCommand &commandRef)
const CalypsoSamCommand &	getCommandRef () const override
const CalypsoApduCommandException	buildCommandException (const std::type_info &exceptionClass, const std::string &message, const CardCommand &commandRef, const int statusWord) const final
AbstractSamCommand &	setApduResponse (const std::shared_ptr< ApduResponseApi > apduResponse) override
void	checkStatus () override
Public Member Functions inherited from keyple::card::calypso::AbstractApduCommand
	AbstractApduCommand (const CardCommand &commandRef)
virtual void	addSubName (const std::string &subName) final
virtual const std::string &	getName () const final
virtual void	setApduRequest (const std::shared_ptr< ApduRequestAdapter > apduRequest) final
virtual const std::shared_ptr< ApduRequestAdapter >	getApduRequest () const final
virtual const std::shared_ptr< ApduResponseApi >	getApduResponse () const final
virtual bool	isSuccessful () const final
virtual const std::string	getStatusInformation () const final

Static Public Attributes
static const std::map< const int, const std::shared_ptr< StatusProperties > >	STATUS_TABLE = initStatusTable()
Static Public Attributes inherited from keyple::card::calypso::AbstractApduCommand
static const std::map< const int, const std::shared_ptr< StatusProperties > >	STATUS_TABLE

Detailed Description

(package-private)
Superclass for all SAM command.

Since

2.0.1

Definition at line 34 of file AbstractSamCommand.h.

Constructor & Destructor Documentation

AbstractSamCommand()

keyple::card::calypso::AbstractSamCommand::AbstractSamCommand

(

const CalypsoSamCommand &

commandRef

)

(package-private)
Constructor dedicated for the building of referenced Calypso commands

Parameters

commandRef

a command reference from the Calypso command table.

Since

2.0.1

Definition at line 33 of file AbstractSamCommand.cpp.

Member Function Documentation

buildCommandException()

const CalypsoApduCommandException keyple::card::calypso::AbstractSamCommand::buildCommandException ( const std::type_info &  exceptionClass, const std::string &  message, const CardCommand &  commandRef, const int  statusWord  ) const

finalvirtual

(package-private)
Builds a command exception.This method should be override in subclasses in order to create specific exceptions.

Parameters

exceptionClass	the exception class.
message	the message.
commandRef	CardCommand the command reference.
statusWord	the status word.

Returns

A not null value

Since

2.0.1

Since

2.0.1

Reimplemented from keyple::card::calypso::AbstractApduCommand.

Definition at line 41 of file AbstractSamCommand.cpp.

checkStatus()

void keyple::card::calypso::AbstractSamCommand::checkStatus ( )

overridevirtual

(package-private)
This method check the status word.
If status word is not referenced, then status is considered unsuccessful.

Exceptions

CalypsoApduCommandException

if status is not successful.

Since

2.0.1

Since

2.0.1

Reimplemented from keyple::card::calypso::AbstractApduCommand.

Definition at line 76 of file AbstractSamCommand.cpp.

getCommandRef()

const CalypsoSamCommand & keyple::card::calypso::AbstractSamCommand::getCommandRef ( ) const

overridevirtual

(package-private)
Gets CardCommand the current command identification

Returns

A not null reference.

Since

2.0.1

Since

2.0.1

Reimplemented from keyple::card::calypso::AbstractApduCommand.

Definition at line 36 of file AbstractSamCommand.cpp.

getStatusTable()

const std::map< const int, const std::shared_ptr< StatusProperties > > & keyple::card::calypso::AbstractSamCommand::getStatusTable ( ) const

overridevirtual

(package-private)
Returns the internal status table

Returns

A not null reference

Since

2.0.1

Since

2.0.1

Reimplemented from keyple::card::calypso::AbstractApduCommand.

Reimplemented in keyple::card::calypso::CmdSamCardCipherPin, keyple::card::calypso::CmdSamCardGenerateKey, keyple::card::calypso::CmdSamDigestAuthenticate, keyple::card::calypso::CmdSamDigestClose, keyple::card::calypso::CmdSamDigestInit, keyple::card::calypso::CmdSamDigestUpdate, keyple::card::calypso::CmdSamGetChallenge, keyple::card::calypso::CmdSamGiveRandom, keyple::card::calypso::CmdSamSelectDiversifier, keyple::card::calypso::CmdSamSvCheck, keyple::card::calypso::CmdSamSvPrepareDebit, keyple::card::calypso::CmdSamSvPrepareLoad, keyple::card::calypso::CmdSamSvPrepareUndebit, and keyple::card::calypso::CmdSamUnlock.

Definition at line 102 of file AbstractSamCommand.cpp.

setApduResponse()

AbstractSamCommand & keyple::card::calypso::AbstractSamCommand::setApduResponse ( const std::shared_ptr< ApduResponseApi >  apduResponse )

overridevirtual

(package-private)
Sets the command ApduResponseApi.

Parameters

apduResponse

The APDU response.

Returns

The current instance.

Since

2.0.1

Since

2.0.1

Reimplemented from keyple::card::calypso::AbstractApduCommand.

Definition at line 70 of file AbstractSamCommand.cpp.

Member Data Documentation

STATUS_TABLE

const std::map< const int, const std::shared_ptr< StatusProperties > > keyple::card::calypso::AbstractSamCommand::STATUS_TABLE = initStatusTable()

static

(package-private)
Default SAM product type.

Since

2.0.1

Definition at line 42 of file AbstractSamCommand.h.

---

The documentation for this class was generated from the following files:

• /github/workspace/src/main/AbstractSamCommand.h
• /github/workspace/src/main/AbstractSamCommand.cpp
