keyple::card::calypso::AbstractApduCommand Class Reference

#include <AbstractApduCommand.h>

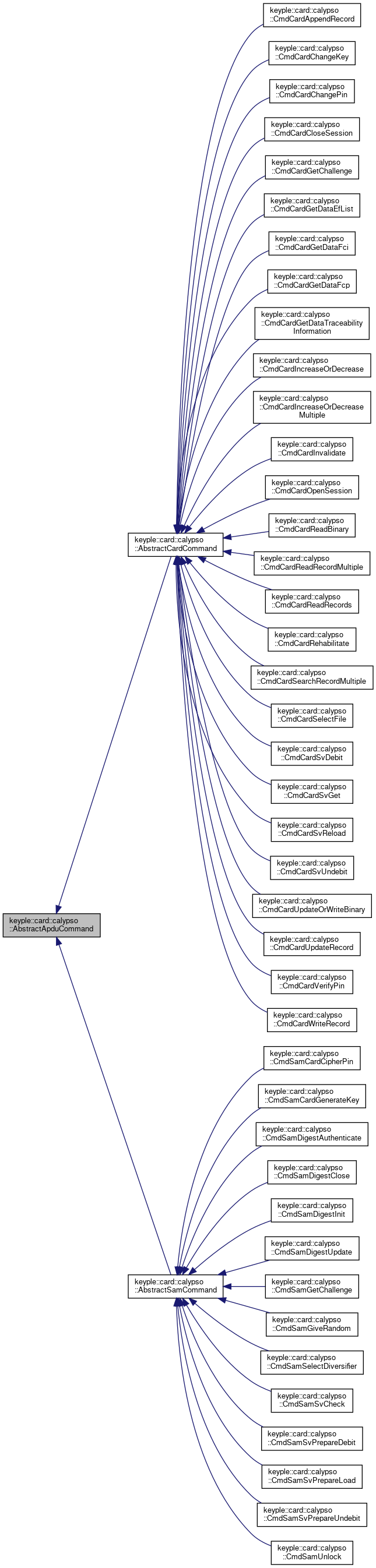

Inheritance diagram for keyple::card::calypso::AbstractApduCommand:

Classes
class	StatusProperties

Public Member Functions
	AbstractApduCommand (const CardCommand &commandRef)
virtual void	addSubName (const std::string &subName) final
virtual const CardCommand &	getCommandRef () const
virtual const std::string &	getName () const final
virtual void	setApduRequest (const std::shared_ptr< ApduRequestAdapter > apduRequest) final
virtual const std::shared_ptr< ApduRequestAdapter >	getApduRequest () const final
virtual AbstractApduCommand &	setApduResponse (const std::shared_ptr< ApduResponseApi > apduResponse)
virtual const std::shared_ptr< ApduResponseApi >	getApduResponse () const final
virtual const std::map< const int, const std::shared_ptr< StatusProperties > > &	getStatusTable () const
virtual const CalypsoApduCommandException	buildCommandException (const std::type_info &exceptionClass, const std::string &message, const CardCommand &commandRef, const int statusWord) const
virtual bool	isSuccessful () const final
virtual void	checkStatus ()
virtual const std::string	getStatusInformation () const final

Static Public Attributes
static const std::map< const int, const std::shared_ptr< StatusProperties > >	STATUS_TABLE

Detailed Description

(package-private)
Generic APDU command.

It provides the generic getters to retrieve:

• the card command reference,
• the name of the command,
• the built org.calypsonet.terminal.card.spi.ApduRequestSpi,
• the parsed org.calypsonet.terminal.card.ApduResponseApi.

Since

2.0.1

Definition at line 48 of file AbstractApduCommand.h.

Constructor & Destructor Documentation

AbstractApduCommand()

keyple::card::calypso::AbstractApduCommand::AbstractApduCommand

(

const CardCommand &

commandRef

)

(package-private)
Constructor

Parameters

commandRef

The command reference.

Since

2.0.1

Definition at line 59 of file AbstractApduCommand.cpp.

Member Function Documentation

addSubName()

void keyple::card::calypso::AbstractApduCommand::addSubName ( const std::string &  subName )

finalvirtual

(package-private)
Appends a string to the current name.

The sub name completes the name of the current command. This method must therefore only be invoked conditionally (log level >= debug).

Parameters

subName

The string to append.

Exceptions

NullPointerException

If the request is not set.

Since

2.0.1

Definition at line 62 of file AbstractApduCommand.cpp.

buildCommandException()

const CalypsoApduCommandException keyple::card::calypso::AbstractApduCommand::buildCommandException ( const std::type_info &  exceptionClass, const std::string &  message, const CardCommand &  commandRef, const int  statusWord  ) const

virtual

(package-private)
Builds a command exception.

This method should be override in subclasses in order to create specific exceptions.

Parameters

exceptionClass	the exception class.
message	the message.
commandRef	CardCommand the command reference.
statusWord	the status word.

Returns

A not null value

Since

2.0.1

Reimplemented in keyple::card::calypso::AbstractCardCommand, and keyple::card::calypso::AbstractSamCommand.

Definition at line 108 of file AbstractApduCommand.cpp.

checkStatus()

void keyple::card::calypso::AbstractApduCommand::checkStatus ( )

virtual

(package-private)
This method check the status word.
If status word is not referenced, then status is considered unsuccessful.

Exceptions

CalypsoApduCommandException

if status is not successful.

Since

2.0.1

Reimplemented in keyple::card::calypso::AbstractCardCommand, and keyple::card::calypso::AbstractSamCommand.

Definition at line 137 of file AbstractApduCommand.cpp.

getApduRequest()

const std::shared_ptr< ApduRequestAdapter > keyple::card::calypso::AbstractApduCommand::getApduRequest ( ) const

finalvirtual

(package-private)
Gets the ApduRequestAdapter.

Returns

Null if the request is not set.

Since

2.0.1

Definition at line 84 of file AbstractApduCommand.cpp.

getApduResponse()

const std::shared_ptr< ApduResponseApi > keyple::card::calypso::AbstractApduCommand::getApduResponse ( ) const

finalvirtual

(package-private)
Gets ApduResponseApi

Returns

Null if the response is not set.

Since

2.0.1

Definition at line 97 of file AbstractApduCommand.cpp.

getCommandRef()

const CardCommand & keyple::card::calypso::AbstractApduCommand::getCommandRef ( ) const

virtual

(package-private)
Gets CardCommand the current command identification

Returns

A not null reference.

Since

2.0.1

Reimplemented in keyple::card::calypso::AbstractCardCommand, and keyple::card::calypso::AbstractSamCommand.

Definition at line 68 of file AbstractApduCommand.cpp.

getName()

const std::string & keyple::card::calypso::AbstractApduCommand::getName ( ) const

finalvirtual

(package-private)
Gets the name of this APDU command.

Returns

A not empty string.

Since

2.0.1

Definition at line 73 of file AbstractApduCommand.cpp.

getStatusInformation()

const std::string keyple::card::calypso::AbstractApduCommand::getStatusInformation ( ) const

finalvirtual

(package-private)
Gets the ASCII message from the statusTable for the current status word.

Returns

A nullable value

Since

2.0.1

Definition at line 160 of file AbstractApduCommand.cpp.

getStatusTable()

const std::map< const int, const std::shared_ptr< StatusProperties > > & keyple::card::calypso::AbstractApduCommand::getStatusTable ( ) const

virtual

(package-private)
Returns the internal status table

Returns

A not null reference

Since

2.0.1

Reimplemented in keyple::card::calypso::AbstractSamCommand, keyple::card::calypso::CmdCardAppendRecord, keyple::card::calypso::CmdCardChangeKey, keyple::card::calypso::CmdCardChangePin, keyple::card::calypso::CmdCardCloseSession, keyple::card::calypso::CmdCardGetDataEfList, keyple::card::calypso::CmdCardGetDataFci, keyple::card::calypso::CmdCardGetDataFcp, keyple::card::calypso::CmdCardGetDataTraceabilityInformation, keyple::card::calypso::CmdCardIncreaseOrDecrease, keyple::card::calypso::CmdCardIncreaseOrDecreaseMultiple, keyple::card::calypso::CmdCardInvalidate, keyple::card::calypso::CmdCardOpenSession, keyple::card::calypso::CmdCardReadBinary, keyple::card::calypso::CmdCardReadRecordMultiple, keyple::card::calypso::CmdCardReadRecords, keyple::card::calypso::CmdCardRehabilitate, keyple::card::calypso::CmdCardSearchRecordMultiple, keyple::card::calypso::CmdCardSelectFile, keyple::card::calypso::CmdCardSvDebit, keyple::card::calypso::CmdCardSvGet, keyple::card::calypso::CmdCardSvReload, keyple::card::calypso::CmdCardSvUndebit, keyple::card::calypso::CmdCardUpdateOrWriteBinary, keyple::card::calypso::CmdCardUpdateRecord, keyple::card::calypso::CmdCardVerifyPin, keyple::card::calypso::CmdCardWriteRecord, keyple::card::calypso::CmdSamCardCipherPin, keyple::card::calypso::CmdSamCardGenerateKey, keyple::card::calypso::CmdSamDigestAuthenticate, keyple::card::calypso::CmdSamDigestClose, keyple::card::calypso::CmdSamDigestInit, keyple::card::calypso::CmdSamDigestUpdate, keyple::card::calypso::CmdSamGetChallenge, keyple::card::calypso::CmdSamGiveRandom, keyple::card::calypso::CmdSamSelectDiversifier, keyple::card::calypso::CmdSamSvCheck, keyple::card::calypso::CmdSamSvPrepareDebit, keyple::card::calypso::CmdSamSvPrepareLoad, keyple::card::calypso::CmdSamSvPrepareUndebit, and keyple::card::calypso::CmdSamUnlock.

Definition at line 103 of file AbstractApduCommand.cpp.

isSuccessful()

bool keyple::card::calypso::AbstractApduCommand::isSuccessful ( ) const

finalvirtual

(package-private)
Gets true if the status is successful from the statusTable according to the current status code.

Returns

A value

Since

2.0.1

Definition at line 130 of file AbstractApduCommand.cpp.

setApduRequest()

void keyple::card::calypso::AbstractApduCommand::setApduRequest ( const std::shared_ptr< ApduRequestAdapter >  apduRequest )

finalvirtual

(package-private)
Sets the command ApduRequestAdapter.

Parameters

apduRequest

The APDU request.

Since

2.0.1

Definition at line 78 of file AbstractApduCommand.cpp.

setApduResponse()

AbstractApduCommand & keyple::card::calypso::AbstractApduCommand::setApduResponse ( const std::shared_ptr< ApduResponseApi >  apduResponse )

virtual

(package-private)
Sets the command ApduResponseApi.

Parameters

apduResponse

The APDU response.

Returns

The current instance.

Since

2.0.1

Reimplemented in keyple::card::calypso::AbstractCardCommand, keyple::card::calypso::AbstractSamCommand, keyple::card::calypso::CmdCardCloseSession, keyple::card::calypso::CmdCardGetDataFci, keyple::card::calypso::CmdCardIncreaseOrDecreaseMultiple, keyple::card::calypso::CmdCardOpenSession, keyple::card::calypso::CmdCardReadRecordMultiple, keyple::card::calypso::CmdCardReadRecords, keyple::card::calypso::CmdCardSearchRecordMultiple, keyple::card::calypso::CmdCardSvDebit, keyple::card::calypso::CmdCardSvGet, keyple::card::calypso::CmdCardSvReload, and keyple::card::calypso::CmdCardSvUndebit.

Definition at line 89 of file AbstractApduCommand.cpp.

Member Data Documentation

STATUS_TABLE

const std::map< const int, const std::shared_ptr< StatusProperties > > keyple::card::calypso::AbstractApduCommand::STATUS_TABLE

static

Initial value:

= {
    {0x9000, std::make_shared<StatusProperties>("Success")},
}

(package-private)
This Map stores expected status that could be by default initialized with sw1=90 and sw2=00 (Success)

Since

2.0.1

Definition at line 129 of file AbstractApduCommand.h.

---

The documentation for this class was generated from the following files:

• /github/workspace/src/main/AbstractApduCommand.h
• /github/workspace/src/main/AbstractApduCommand.cpp
