keyple::card::calypso::CommonSamTransactionManagerAdapter< T > Class Template Reference

#include <CommonSamTransactionManagerAdapter.h>

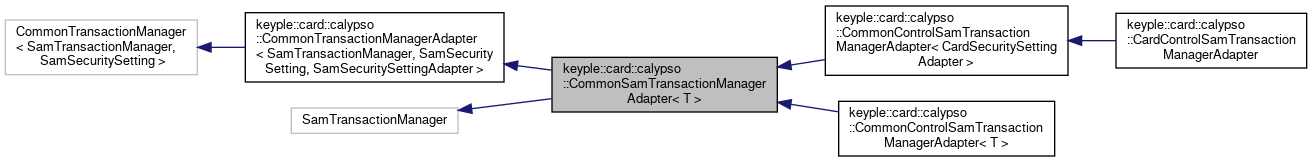

Inheritance diagram for keyple::card::calypso::CommonSamTransactionManagerAdapter< T >:

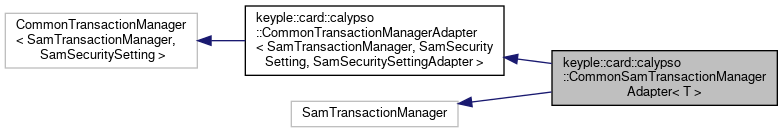

Collaboration diagram for keyple::card::calypso::CommonSamTransactionManagerAdapter< T >:

Public Member Functions
	CommonSamTransactionManagerAdapter (const std::shared_ptr< ProxyReaderApi > samReader, const std::shared_ptr< CalypsoSamAdapter > sam, const std::shared_ptr< SamSecuritySettingAdapter > securitySetting)
	CommonSamTransactionManagerAdapter (const std::shared_ptr< SmartCard > targetSmartCard, const std::shared_ptr< CommonSecuritySettingAdapter< T > > securitySetting, const std::vector< uint8_t > &defaultKeyDiversifier, const std::vector< std::vector< uint8_t > > &transactionAuditData)
const std::vector< std::vector< uint8_t > > &	getTransactionAuditData () const final
const std::shared_ptr< CardReader >	getSamReader () const final
const std::shared_ptr< CalypsoSam >	getCalypsoSam () const final
SamTransactionManager &	prepareComputeSignature (const any data) override
SamTransactionManager &	prepareVerifySignature (const any data) override
SamTransactionManager &	processCommands () override
Public Member Functions inherited from keyple::card::calypso::CommonTransactionManagerAdapter< SamTransactionManager, SamSecuritySetting, SamSecuritySettingAdapter >
	CommonTransactionManagerAdapter (std::shared_ptr< SmartCard > targetSmartCard, const std::shared_ptr< CommonSecuritySettingAdapter< SamSecuritySettingAdapter > > securitySetting, const std::vector< std::vector< uint8_t > > &transactionAuditData)
const std::vector< std::vector< uint8_t > > &	getTransactionAuditData () const override
const std::vector< std::shared_ptr< ApduRequestSpi > >	getApduRequests (const std::vector< std::shared_ptr< AbstractApduCommand > > &commands)
virtual void	saveTransactionAuditData (const std::shared_ptr< CardRequestSpi > cardRequest, const std::shared_ptr< CardResponseApi > cardResponse)
const std::string	getTransactionAuditDataAsString () const

Protected Member Functions
virtual std::vector< std::shared_ptr< AbstractApduCommand > > &	getSamCommands ()
void	prepareSelectDiversifierIfNeeded (const std::vector< uint8_t > &specificKeyDiversifier)
void	prepareSelectDiversifierIfNeeded ()

Additional Inherited Members
Static Public Member Functions inherited from keyple::card::calypso::CommonTransactionManagerAdapter< SamTransactionManager, SamSecuritySetting, SamSecuritySettingAdapter >
static void	saveTransactionAuditData (const std::shared_ptr< CardRequestSpi > cardRequest, const std::shared_ptr< CardResponseApi > cardResponse, std::vector< std::vector< uint8_t > > &transactionAuditData)
Public Attributes inherited from keyple::card::calypso::CommonTransactionManagerAdapter< SamTransactionManager, SamSecuritySetting, SamSecuritySettingAdapter >
const std::string	MSG_SAM_READER_COMMUNICATION_ERROR
const std::string	MSG_SAM_COMMUNICATION_ERROR
const std::string	MSG_SAM_COMMAND_ERROR
const std::string	MSG_WHILE_TRANSMITTING_COMMANDS

Detailed Description

template<typename T>
class keyple::card::calypso::CommonSamTransactionManagerAdapter< T >

(package-private)
Abstract class for all SamTransactionManager classes.

Since

2.2.0

Definition at line 74 of file CommonSamTransactionManagerAdapter.h.

Constructor & Destructor Documentation

CommonSamTransactionManagerAdapter() [1/2]

template<typename T >

keyple::card::calypso::CommonSamTransactionManagerAdapter< T >::CommonSamTransactionManagerAdapter ( const std::shared_ptr< ProxyReaderApi >  samReader, const std::shared_ptr< CalypsoSamAdapter >  sam, const std::shared_ptr< SamSecuritySettingAdapter >  securitySetting  )

inline

(package-private)
Creates a new instance (to be used for instantiation of SamTransactionManagerAdapter only).

Parameters

samReader	The reader through which the SAM communicates.
sam	The initial SAM data provided by the selection process.
securitySetting	The SAM security settings (optional).

Since

2.2.0

Definition at line 90 of file CommonSamTransactionManagerAdapter.h.

CommonSamTransactionManagerAdapter() [2/2]

template<typename T >

keyple::card::calypso::CommonSamTransactionManagerAdapter< T >::CommonSamTransactionManagerAdapter ( const std::shared_ptr< SmartCard >  targetSmartCard, const std::shared_ptr< CommonSecuritySettingAdapter< T > >  securitySetting, const std::vector< uint8_t > &  defaultKeyDiversifier, const std::vector< std::vector< uint8_t > > &  transactionAuditData  )

inline

(package-private)
Creates a new instance (to be used for instantiation of CommonControlSamTransactionManagerAdapter only).

Parameters

targetSmartCard	The target smartcard provided by the selection process.
securitySetting	The card or SAM security settings.
defaultKeyDiversifier	The full serial number of the target card or SAM to be used by default when diversifying keys.
transactionAuditData	The original transaction data to fill.

Since

2.2.0

Definition at line 118 of file CommonSamTransactionManagerAdapter.h.

Member Function Documentation

getCalypsoSam()

template<typename T >

const std::shared_ptr< CalypsoSam > keyple::card::calypso::CommonSamTransactionManagerAdapter< T >::getCalypsoSam ( ) const

inlinefinal

Since

2.2.0

Definition at line 159 of file CommonSamTransactionManagerAdapter.h.

getSamCommands()

template<typename T >

virtual std::vector< std::shared_ptr< AbstractApduCommand > > & keyple::card::calypso::CommonSamTransactionManagerAdapter< T >::getSamCommands ( )

inlineprotectedvirtual

(package-private)
Returns a reference to the main list of SAM commands.

C++: vector of AbstractApduCommand instead of AbstractCardCommand because of vector vs. polymorphism issues...

Since

2.2.0

Definition at line 524 of file CommonSamTransactionManagerAdapter.h.

getSamReader()

template<typename T >

const std::shared_ptr< CardReader > keyple::card::calypso::CommonSamTransactionManagerAdapter< T >::getSamReader ( ) const

inlinefinal

Since

2.2.0

Definition at line 149 of file CommonSamTransactionManagerAdapter.h.

getTransactionAuditData()

template<typename T >

const std::vector< std::vector< uint8_t > > & keyple::card::calypso::CommonSamTransactionManagerAdapter< T >::getTransactionAuditData ( ) const

inlinefinal

C++: Ugly hack to avoid ambiguous method lookup. This function should be final in CommonTransactionManagerAdapter

Since

2.2.0

Definition at line 139 of file CommonSamTransactionManagerAdapter.h.

prepareComputeSignature()

template<typename T >

SamTransactionManager & keyple::card::calypso::CommonSamTransactionManagerAdapter< T >::prepareComputeSignature ( const any  data )

inlineoverride

Since

2.2.0

Definition at line 169 of file CommonSamTransactionManagerAdapter.h.

prepareSelectDiversifierIfNeeded() [1/2]

template<typename T >

void keyple::card::calypso::CommonSamTransactionManagerAdapter< T >::prepareSelectDiversifierIfNeeded ( )

inlineprotected

(package-private)
Prepares a "SelectDiversifier" command using the default key diversifier if it is not already selected.

Since

2.2.0

Definition at line 556 of file CommonSamTransactionManagerAdapter.h.

prepareSelectDiversifierIfNeeded() [2/2]

template<typename T >

void keyple::card::calypso::CommonSamTransactionManagerAdapter< T >::prepareSelectDiversifierIfNeeded ( const std::vector< uint8_t > &  specificKeyDiversifier )

inlineprotected

(package-private)
Prepares a "SelectDiversifier" command using a specific or the default key diversifier if it is not already selected.

Parameters

specificKeyDiversifier

The specific key diversifier (optional).

Since

2.2.0

Definition at line 537 of file CommonSamTransactionManagerAdapter.h.

prepareVerifySignature()

template<typename T >

SamTransactionManager & keyple::card::calypso::CommonSamTransactionManagerAdapter< T >::prepareVerifySignature ( const any  data )

inlineoverride

Since

2.2.0

Definition at line 253 of file CommonSamTransactionManagerAdapter.h.

processCommands()

template<typename T >

SamTransactionManager & keyple::card::calypso::CommonSamTransactionManagerAdapter< T >::processCommands ( )

inlineoverride

Since

2.2.0

Definition at line 376 of file CommonSamTransactionManagerAdapter.h.

---

The documentation for this class was generated from the following file:

• /github/workspace/src/main/CommonSamTransactionManagerAdapter.h
