keyple::card::calypso::CardSecuritySettingAdapter Class Reference

#include <CardSecuritySettingAdapter.h>

Inheritance diagram for keyple::card::calypso::CardSecuritySettingAdapter:

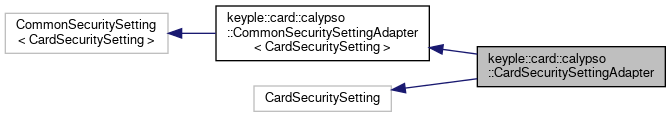

Collaboration diagram for keyple::card::calypso::CardSecuritySettingAdapter:

Public Member Functions
CardSecuritySetting &	setSamResource (const std::shared_ptr< CardReader > samReader, const std::shared_ptr< CalypsoSam > calypsoSam) override
CardSecuritySettingAdapter &	enableMultipleSession () override
CardSecuritySettingAdapter &	enableRatificationMechanism () override
CardSecuritySettingAdapter &	enablePinPlainTransmission () override
CardSecuritySettingAdapter &	enableSvLoadAndDebitLog () override
CardSecuritySettingAdapter &	authorizeSvNegativeBalance () override
CardSecuritySettingAdapter &	assignKif (const WriteAccessLevel writeAccessLevel, const uint8_t kvc, const uint8_t kif) override
CardSecuritySettingAdapter &	assignDefaultKif (const WriteAccessLevel writeAccessLevel, const uint8_t kif) override
CardSecuritySettingAdapter &	assignDefaultKvc (const WriteAccessLevel writeAccessLevel, const uint8_t kvc) override
CardSecuritySettingAdapter &	addAuthorizedSessionKey (const uint8_t kif, const uint8_t kvc) override
CardSecuritySettingAdapter &	addAuthorizedSvKey (const uint8_t kif, const uint8_t kvc) override
CardSecuritySettingAdapter &	setPinVerificationCipheringKey (const uint8_t kif, const uint8_t kvc) override
CardSecuritySettingAdapter &	setPinModificationCipheringKey (const uint8_t kif, const uint8_t kvc) override
bool	isMultipleSessionEnabled () const
bool	isRatificationMechanismEnabled () const
bool	isPinPlainTransmissionEnabled () const
bool	isSvLoadAndDebitLogEnabled () const
bool	isSvNegativeBalanceAuthorized () const
const std::shared_ptr< uint8_t >	getKif (const WriteAccessLevel writeAccessLevel, const uint8_t kvc) const
const std::shared_ptr< uint8_t >	getDefaultKif (const WriteAccessLevel writeAccessLevel) const
const std::shared_ptr< uint8_t >	getDefaultKvc (const WriteAccessLevel writeAccessLevel) const
bool	isSessionKeyAuthorized (const std::shared_ptr< uint8_t > kif, const std::shared_ptr< uint8_t > kvc) const
bool	isSvKeyAuthorized (const std::shared_ptr< uint8_t > kif, const std::shared_ptr< uint8_t > kvc) const
const std::shared_ptr< uint8_t >	getPinVerificationCipheringKif () const
const std::shared_ptr< uint8_t >	getPinVerificationCipheringKvc () const
const std::shared_ptr< uint8_t >	getPinModificationCipheringKif () const
const std::shared_ptr< uint8_t >	getPinModificationCipheringKvc () const
Public Member Functions inherited from keyple::card::calypso::CommonSecuritySettingAdapter< CardSecuritySetting >
CardSecuritySetting &	setControlSamResource (const std::shared_ptr< CardReader > samReader, const std::shared_ptr< CalypsoSam > calypsoSam) final
CardSecuritySetting &	setSamRevocationService (const std::shared_ptr< SamRevocationServiceSpi > service) final
std::shared_ptr< ProxyReaderApi >	getControlSamReader () const
std::shared_ptr< CalypsoSamAdapter >	getControlSam () const
std::shared_ptr< SamRevocationServiceSpi >	getSamRevocationServiceSpi () const

Detailed Description

(package-private)
Implementation of CardSecuritySetting.

Since

2.0.0

Definition at line 46 of file CardSecuritySettingAdapter.h.

Member Function Documentation

addAuthorizedSessionKey()

CardSecuritySettingAdapter & keyple::card::calypso::CardSecuritySettingAdapter::addAuthorizedSessionKey ( const uint8_t  kif, const uint8_t  kvc  )

override

Since

2.0.0

Definition at line 97 of file CardSecuritySettingAdapter.cpp.

addAuthorizedSvKey()

CardSecuritySettingAdapter & keyple::card::calypso::CardSecuritySettingAdapter::addAuthorizedSvKey ( const uint8_t  kif, const uint8_t  kvc  )

override

Since

2.0.0

Definition at line 105 of file CardSecuritySettingAdapter.cpp.

assignDefaultKif()

CardSecuritySettingAdapter & keyple::card::calypso::CardSecuritySettingAdapter::assignDefaultKif ( const WriteAccessLevel  writeAccessLevel, const uint8_t  kif  )

override

Since

2.0.0

Definition at line 81 of file CardSecuritySettingAdapter.cpp.

assignDefaultKvc()

CardSecuritySettingAdapter & keyple::card::calypso::CardSecuritySettingAdapter::assignDefaultKvc ( const WriteAccessLevel  writeAccessLevel, const uint8_t  kvc  )

override

Since

2.0.0

Definition at line 89 of file CardSecuritySettingAdapter.cpp.

assignKif()

CardSecuritySettingAdapter & keyple::card::calypso::CardSecuritySettingAdapter::assignKif ( const WriteAccessLevel  writeAccessLevel, const uint8_t  kvc, const uint8_t  kif  )

override

Since

2.0.0

Definition at line 72 of file CardSecuritySettingAdapter.cpp.

authorizeSvNegativeBalance()

CardSecuritySettingAdapter & keyple::card::calypso::CardSecuritySettingAdapter::authorizeSvNegativeBalance ( )

override

Since

2.0.0

Definition at line 65 of file CardSecuritySettingAdapter.cpp.

enableMultipleSession()

CardSecuritySettingAdapter & keyple::card::calypso::CardSecuritySettingAdapter::enableMultipleSession ( )

override

Since

2.0.0

Definition at line 37 of file CardSecuritySettingAdapter.cpp.

enablePinPlainTransmission()

CardSecuritySettingAdapter & keyple::card::calypso::CardSecuritySettingAdapter::enablePinPlainTransmission ( )

override

Since

2.0.0

Definition at line 51 of file CardSecuritySettingAdapter.cpp.

enableRatificationMechanism()

CardSecuritySettingAdapter & keyple::card::calypso::CardSecuritySettingAdapter::enableRatificationMechanism ( )

override

Since

2.0.0

Definition at line 44 of file CardSecuritySettingAdapter.cpp.

enableSvLoadAndDebitLog()

CardSecuritySettingAdapter & keyple::card::calypso::CardSecuritySettingAdapter::enableSvLoadAndDebitLog ( )

override

Since

2.0.0

Definition at line 58 of file CardSecuritySettingAdapter.cpp.

getDefaultKif()

const std::shared_ptr< uint8_t > keyple::card::calypso::CardSecuritySettingAdapter::getDefaultKif

(

const WriteAccessLevel

writeAccessLevel

)

const

(package-private)
Gets the default KIF value for the provided write access level.

Parameters

writeAccessLevel

The write access level.

Returns

Null if no KIF is available.

Exceptions

IllegalArgumentException

If the provided argument is null.

Since

2.0.0

Definition at line 172 of file CardSecuritySettingAdapter.cpp.

getDefaultKvc()

const std::shared_ptr< uint8_t > keyple::card::calypso::CardSecuritySettingAdapter::getDefaultKvc

(

const WriteAccessLevel

writeAccessLevel

)

const

(package-private)
Gets the default KVC value for the provided write access level.

Parameters

writeAccessLevel

The write access level.

Returns

Null if no KVC is available.

Exceptions

IllegalArgumentException

If the provided argument is null.

Since

2.0.0

Definition at line 183 of file CardSecuritySettingAdapter.cpp.

getKif()

const std::shared_ptr< uint8_t > keyple::card::calypso::CardSecuritySettingAdapter::getKif	(	const WriteAccessLevel	writeAccessLevel,
		const uint8_t	kvc
	)		const

(package-private)
Gets the KIF value to use for the provided write access level and KVC value.

Parameters

writeAccessLevel	The write access level.
kvc	The KVC value.

Returns

Null if no KIF is available.

Exceptions

IllegalArgumentException

If the provided writeAccessLevel is null.

Since

2.0.0

Definition at line 156 of file CardSecuritySettingAdapter.cpp.

getPinModificationCipheringKif()

const std::shared_ptr< uint8_t > keyple::card::calypso::CardSecuritySettingAdapter::getPinModificationCipheringKif

(

)

const

(package-private)
Gets the KIF value of the PIN modification ciphering key.

Returns

Null if no KIF is available.

Since

2.0.0

Definition at line 234 of file CardSecuritySettingAdapter.cpp.

getPinModificationCipheringKvc()

const std::shared_ptr< uint8_t > keyple::card::calypso::CardSecuritySettingAdapter::getPinModificationCipheringKvc

(

)

const

(package-private)
Gets the KVC value of the PIN modification ciphering key.

Returns

Null if no KVC is available.

Since

2.0.0

Definition at line 239 of file CardSecuritySettingAdapter.cpp.

getPinVerificationCipheringKif()

const std::shared_ptr< uint8_t > keyple::card::calypso::CardSecuritySettingAdapter::getPinVerificationCipheringKif

(

)

const

(package-private)
Gets the KIF value of the PIN verification ciphering key.

Returns

Null if no KIF is available.

Since

2.0.0

Definition at line 224 of file CardSecuritySettingAdapter.cpp.

getPinVerificationCipheringKvc()

const std::shared_ptr< uint8_t > keyple::card::calypso::CardSecuritySettingAdapter::getPinVerificationCipheringKvc

(

)

const

(package-private)
Gets the KVC value of the PIN verification ciphering key.

Returns

Null if no KVC is available.

Since

2.0.0

Definition at line 229 of file CardSecuritySettingAdapter.cpp.

isMultipleSessionEnabled()

bool keyple::card::calypso::CardSecuritySettingAdapter::isMultipleSessionEnabled

(

)

const

(package-private)
Indicates if the multiple session mode is enabled.

Returns

True if the multiple session mode is enabled.

Since

2.0.0

Definition at line 131 of file CardSecuritySettingAdapter.cpp.

isPinPlainTransmissionEnabled()

bool keyple::card::calypso::CardSecuritySettingAdapter::isPinPlainTransmissionEnabled

(

)

const

(package-private)
Indicates if the transmission of the PIN in plain text is enabled.

Returns

True if the transmission of the PIN in plain text is enabled.

Since

2.0.0

Definition at line 141 of file CardSecuritySettingAdapter.cpp.

isRatificationMechanismEnabled()

bool keyple::card::calypso::CardSecuritySettingAdapter::isRatificationMechanismEnabled

(

)

const

(package-private)
Indicates if the ratification mechanism is enabled.

Returns

True if the ratification mechanism is enabled.

Since

2.0.0

Definition at line 136 of file CardSecuritySettingAdapter.cpp.

isSessionKeyAuthorized()

bool keyple::card::calypso::CardSecuritySettingAdapter::isSessionKeyAuthorized	(	const std::shared_ptr< uint8_t >	kif,
		const std::shared_ptr< uint8_t >	kvc
	)		const

(package-private)
Indicates if the KIF/KVC pair is authorized for a session.

Parameters

kif	The KIF value.
kvc	The KVC value.

Returns

False if KIF or KVC is null or unauthorized.

Since

2.0.0

Definition at line 194 of file CardSecuritySettingAdapter.cpp.

isSvKeyAuthorized()

bool keyple::card::calypso::CardSecuritySettingAdapter::isSvKeyAuthorized	(	const std::shared_ptr< uint8_t >	kif,
		const std::shared_ptr< uint8_t >	kvc
	)		const

(package-private)
Indicates if the KIF/KVC pair is authorized for a SV operation.

Parameters

kif	The KIF value.
kvc	The KVC value.

Returns

False if KIF or KVC is null or unauthorized.

Since

2.0.0

Definition at line 209 of file CardSecuritySettingAdapter.cpp.

isSvLoadAndDebitLogEnabled()

bool keyple::card::calypso::CardSecuritySettingAdapter::isSvLoadAndDebitLogEnabled

(

)

const

(package-private)
Indicates if the retrieval of both load and debit log is enabled.

Returns

True if the retrieval of both load and debit log is enabled.

Since

2.0.0

Definition at line 146 of file CardSecuritySettingAdapter.cpp.

isSvNegativeBalanceAuthorized()

bool keyple::card::calypso::CardSecuritySettingAdapter::isSvNegativeBalanceAuthorized

(

)

const

(package-private)
Indicates if the SV balance is allowed to become negative.

Returns

True if the retrieval of both load and debit log is enabled.

Since

2.0.0

Definition at line 151 of file CardSecuritySettingAdapter.cpp.

setPinModificationCipheringKey()

CardSecuritySettingAdapter & keyple::card::calypso::CardSecuritySettingAdapter::setPinModificationCipheringKey ( const uint8_t  kif, const uint8_t  kvc  )

override

Since

2.0.0

Definition at line 122 of file CardSecuritySettingAdapter.cpp.

setPinVerificationCipheringKey()

CardSecuritySettingAdapter & keyple::card::calypso::CardSecuritySettingAdapter::setPinVerificationCipheringKey ( const uint8_t  kif, const uint8_t  kvc  )

override

Since

2.0.0

Definition at line 113 of file CardSecuritySettingAdapter.cpp.

setSamResource()

CardSecuritySetting & keyple::card::calypso::CardSecuritySettingAdapter::setSamResource ( const std::shared_ptr< CardReader >  samReader, const std::shared_ptr< CalypsoSam >  calypsoSam  )

override

Since

2.0.0

Deprecated:

Use setControlSamResource(CardReader, CalypsoSam) instead.

Definition at line 30 of file CardSecuritySettingAdapter.cpp.

---

The documentation for this class was generated from the following files:

• /github/workspace/src/main/CardSecuritySettingAdapter.h
• /github/workspace/src/main/CardSecuritySettingAdapter.cpp
